[Kerry Fullington]

I like to use objects to show locations of plumbing stub outs on my drawings.

I have been using user shapes (cylinders) but I would prefer something that will dimension from it’s center.

Any Ideas?

I use outlet and switch objects to show existing electrical positions but would also like them to position off their center points.

I can place the items horizontally to their center points but not vertically. I would also like the auto dimensions to reference center points.

[Neil Wilson]

Hi Kerry,

You can get a center line dimension on a user shape by going in to display settings, dimensions, auto dimensions, general, miscellaneous items and selecting user shapes.  Then check continuous center and apply and okay.

Hope that helps

Neil

[Kerry Fullington]

Thanks Neil,

For the Wall Custom Shapes I use for plumbing and things like an electrical outlet I can get center measurements and placement horizontally but not vertically in the elevations using the method you describe.

What am I missing



Attachments:

1.



[Mike Langensiepen]

Hi Kerry,

Which Catalogue/Shape are you using for those? I’m trying to duplicate that myself but not sure what you are using.

I’m going to add this to the wishlist – Plumbing and Electrical Symbols that show distance to centre for elevations and plans. This would be very handy.

Thanks

Mike

[Kerry Fullington]

Mike,

The plumbing (pipe) shapes I get from

Room/Architectural Elements/Custom Shapes/Wall Custom Shapes/Cylinder.F for pipes in  walls

and Cylinder.V for pipes in floors.

The outlets and Switches must now be accessed via the Cloud 2020 Decorative Items US

When I place the pipes using this method I can open doors on the sink cabinets and get a visual of their location which is very helpful.

Attachments:

1.



[Mike Langensiepen]

That looks perfect – will try now. Thanks very much Kerry.

[Kerry Fullington]

Mike,

This is also great for checking vent pipe location to hoods. Just look at them in Wireframe.

Attachments:

1.



[Mike Langensiepen]

Absolutely – wish I’d known that before.

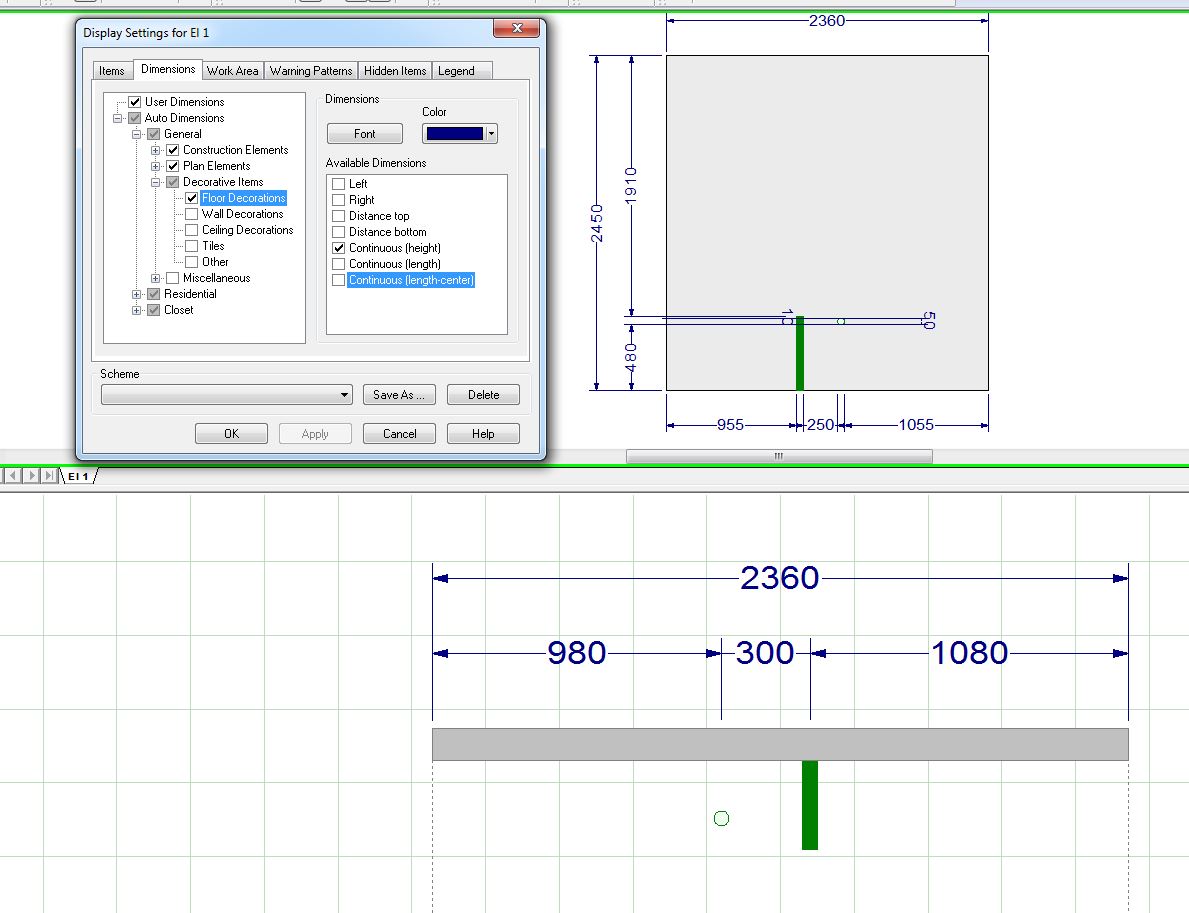

Neil, the dimension settings for those shapes aren’t under display settings, dimensions, auto dimensions, general, miscellaneous items and selecting user shapes – they are under floor decoration (well in ROOM_M anyway).

Also, there is no option for height – center. This is a little bit of a pain but not critical. Can you please add a request for a height-center to the elevation schema. The plan schema is fine.

Attachments:

1.
