Catalog element won't show on screen

To Parent Forum
    • January 15, 2019 at 12:51 am #223788
      Dror Kartash
      Participant

      Hi everybody.

      I have a weird issue with one of the catalogs.
      I try to add electrical outlet symbols to my plan.

      I go to catalog STYLE_M –>Symbols –> SYMB 220VX1 (power outlet 220vx 1).

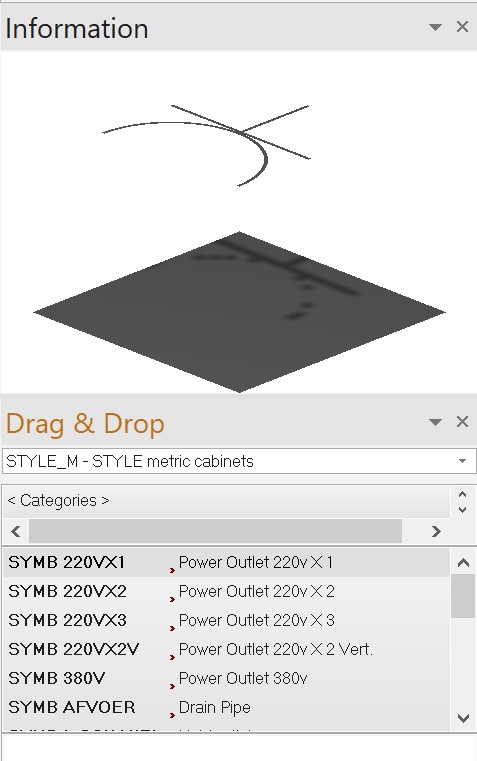

      On the information window it looks fine (see attached screenshot #1).

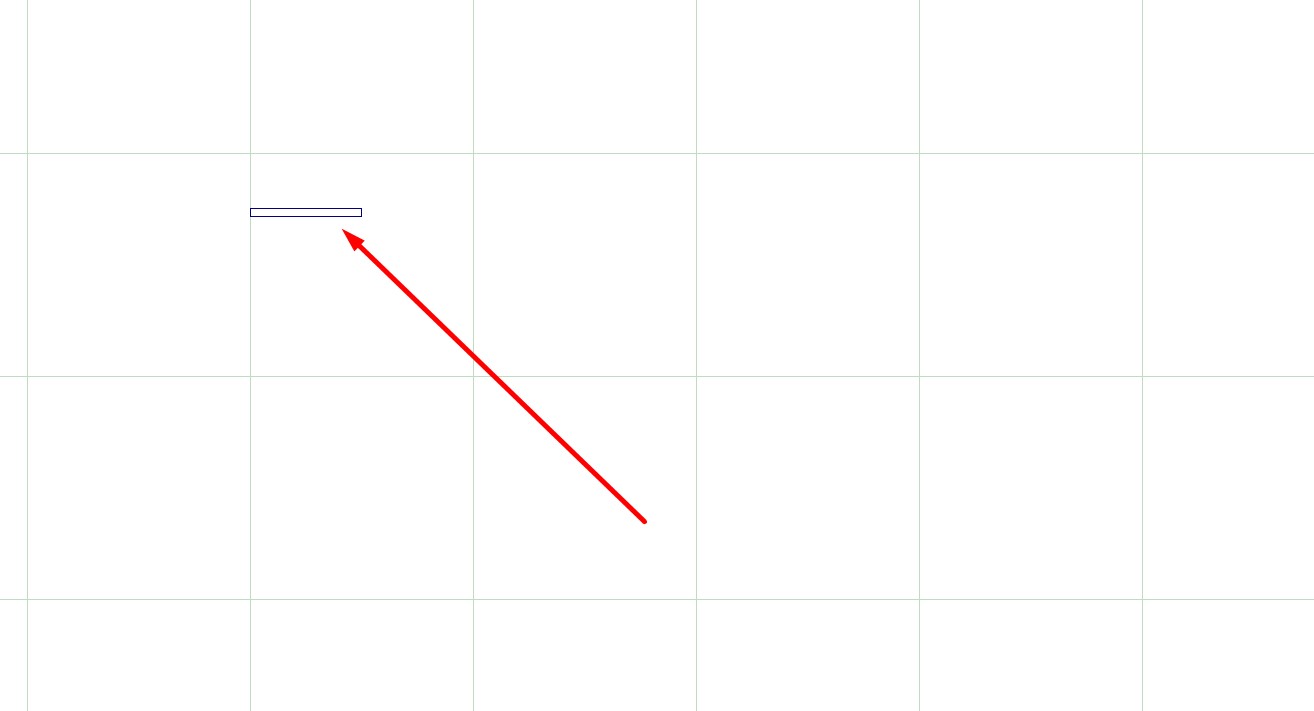

      When I drag it to the plan, is just show a box (see attached screenshot #2).

      What’s wrong?

      Attachments:

      1. Screenshot_1.jpg

      2. Screenshot_2.jpg

    • January 15, 2019 at 5:09 pm #223947
      Neil Wilson
      Participant

      Hi Dror,

      That symbol is a wall symbol.  If you look at it in an elevation you should see the symbol.

      Neil
