[Lara]

Hi,

Can anyone tell me if it is possible to create in 2020 design, elevations of ends of cabinet runs? Such as the ends of an island (not the sides, the ends), the ends of a run of base/wall cabinets, or end of a tall cabinet. I want to show the end elevation view with the plant-on panel details and dimensions, etc. So far, I cannot find this ability. The ‘side elevation’ icon appears to only create a cross sectional view, inside of a cabinet, but not outside. Perhaps my graphics card just has a problem and is not letting me do this seemingly obvious function? If this is possible, I’d love to know how. Thanks!

[Danny Steiger]

Hi Lara,

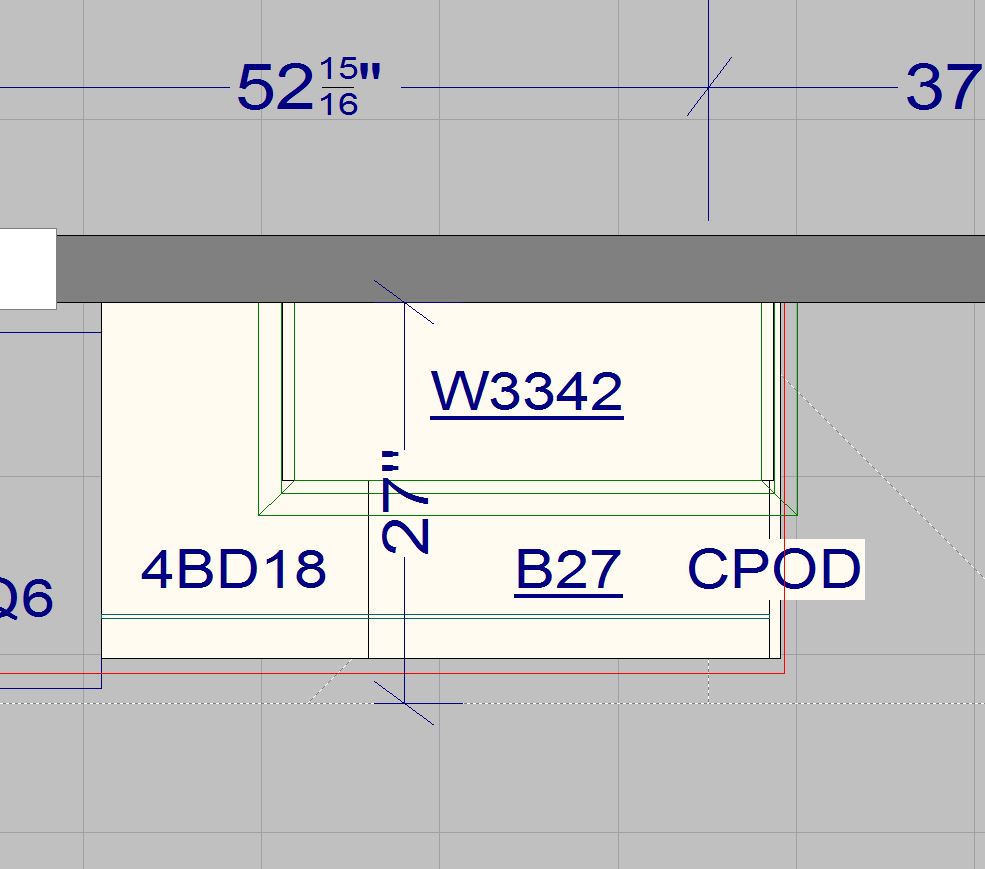

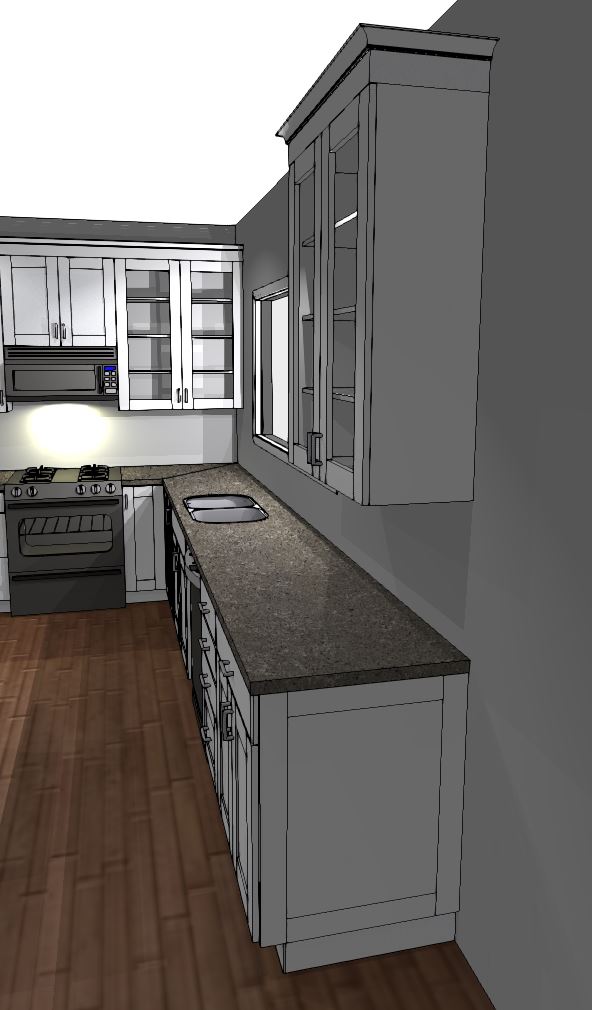

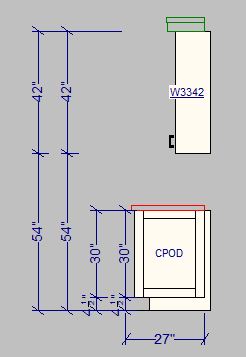

I was able to kind of make it work by adding a placement line (not wall) to the end of the run, in the middle of the last cabinet.  Not sure if this is exactly what you’re looking for, but hopefully it helps.  I didn’t spend the time to add user dimensions on the panel, but is certainly possible.

Attachments:

1.



2.



3.



[Mike Langensiepen]

Neat solution Danny – going in my ‘bible’
