[Zeljko Markovic]

We are working on wall design and have an issue with 2020 Design 11.10.1.1

When making walls there is no option to modify a radius of a Wall Cut-Out / Pass through

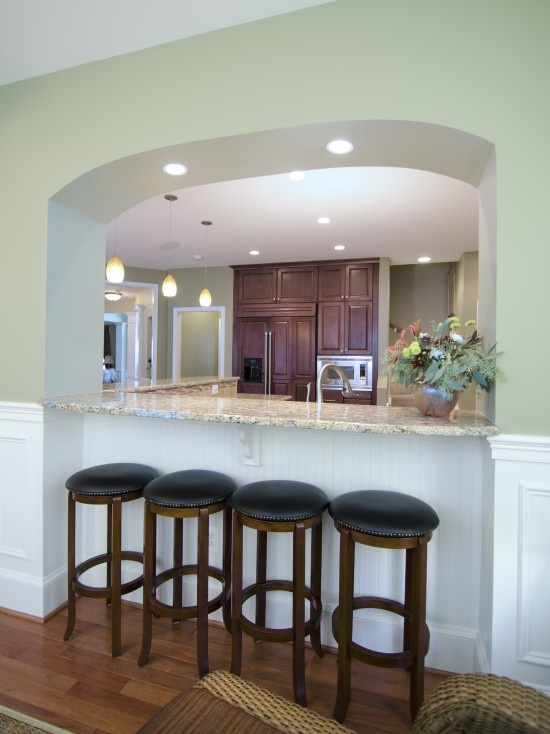

Here is an example I found on Google of what we are looking to create. (also attached)

https://i.pinimg.com/736x/a7/62/b6/a762b609180c8cb09c1e6f0eaeedfb0c–kitchen-redo-kitchen-remodel.jpg

In pervious versions we could adjust the height or the radius but now we only get a few options and most are fixed to half circles etc.

Any advice?

Thank you in advance,

Zeljko

Attachments:

1.



[Neil Wilson]

Hi Zeljko,

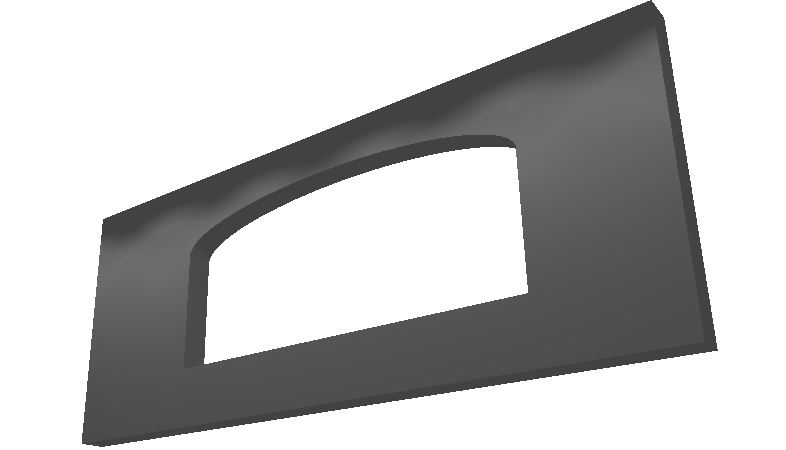

Get that exact cut might be tough but if you use a half oval cut out on top of a rectangular cut out you will be able to get something that is very close.

Neil

Attachments:

1.



[Zeljko Markovic]

Hi Neil,

thanks for the reply. We are unable to edit/make that radius look larger on a longer opening. Do you have a setting to modify the radius? We do not see that.

It was possible before but I am reading there is an error or bug in the current software. We would suggest making that adjustment a feature again.

[Neil Wilson]

Hi Zeljko,

You can’t type in the exact height unfortunately but you can edit the radius by dragging the center point on the pass through in the elevation view.

Neil

Attachments:

1.
