Stretching the height with special symbols

    • June 21, 2020 at 12:36 am #286735
      Jean Kropp
      Participant

      I have been scouring the forms and YouTube channel to figure out how to stretch the height of a product. I can stretch the width, no problem. But, I am trying to make a product taller. ie: change the height of a panel support leg to a custom height of 36″ tall. Is this possible?

    • June 22, 2020 at 8:31 am #286736
      Eric DeVito
      2020 Expert

      This should be possible. Since you are dealing with height of the item you will most likely need to use the stretch command in the 3D Symbol View from the Front View of the item, using the Z height field.

    • June 25, 2020 at 3:02 pm #287510
      Jean Kropp
      Participant

      Hi Eric,

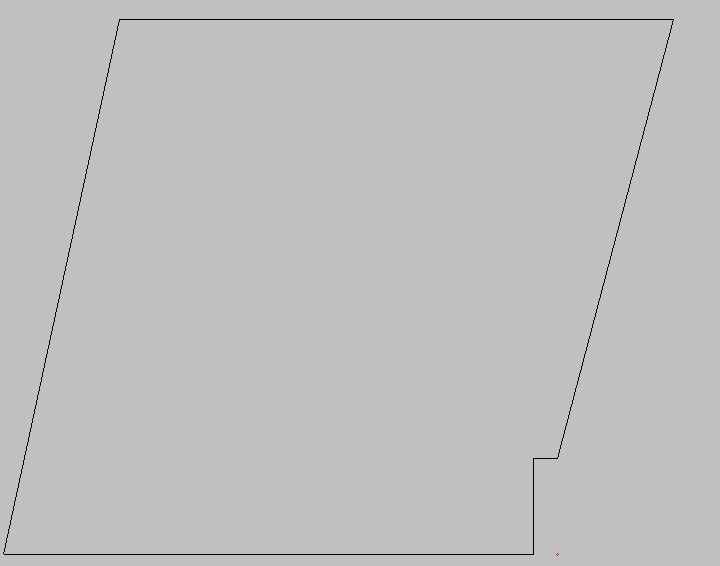

      That was what I assumed and tried. It is definitely not working as expected. It is coming out like a trapezoid? What am I doing wrong? Or not understanding? See attached image to see my results.

      Attachments:
      You must be logged in to view attached files.
