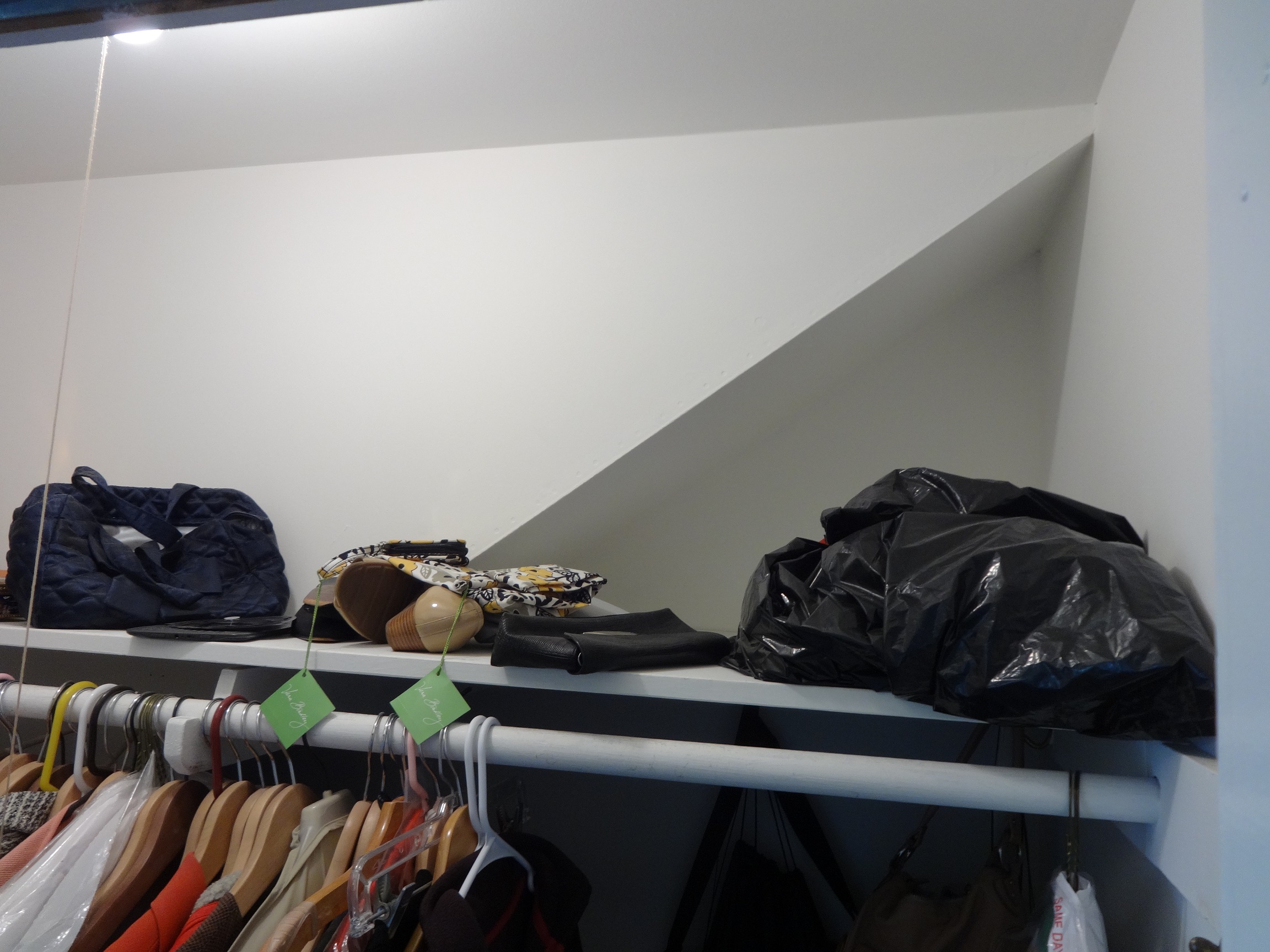

If anyone has a moment, I’m trying to figure out how to show the sloped ceiling (pic attached) in my design. Any advice? Thanks!

Attachments:

1.



[Neil Wilson]

Hey Jordyn,

I would create the angled wall using the different heights on either end of the wall and then use a triangular pass through to create niche.  Then just draw a surface at the back of the pass through to close it.

Neil

[Mike Langensiepen]

Or find a catalogue with an angled wall obstruction – I built one into my catalogues just for stairways like this.

[Susanne Meyer]

Hi Jordyn,  I have designed many closets with these “gusset triangles”

Here is my work around.  Start with Room in Drag and Drop.

Select Architectural Elements, select Wall custom shapes.  There are several

triangles there which you can choose.  Then adjust the height, width and depth.

Change the color to the wall color, lift it to the correct position and walla!

Sus
