Raised or split level floors

  • February 6, 2019 at 11:39 am #226055
    Leigh Quilter

    I was wondering if anybody has any tips on how to create raised or split level floors in Fusion 2020? I know that I could simply put a box in freehand, but I want to know a way (if possible) of enabling me to use the advanced floor coverings function to make it look like the rest.

  • February 12, 2019 at 3:48 am #226705
    Ollie Farrant
    2020 Expert

    Hi Leigh,

    As it stands, the only way to have split/raised floor levels is to insert a box as you mentioned.

    You can tile a box via the coverings feature, please follow these steps:

    1. View Tab > Perspective

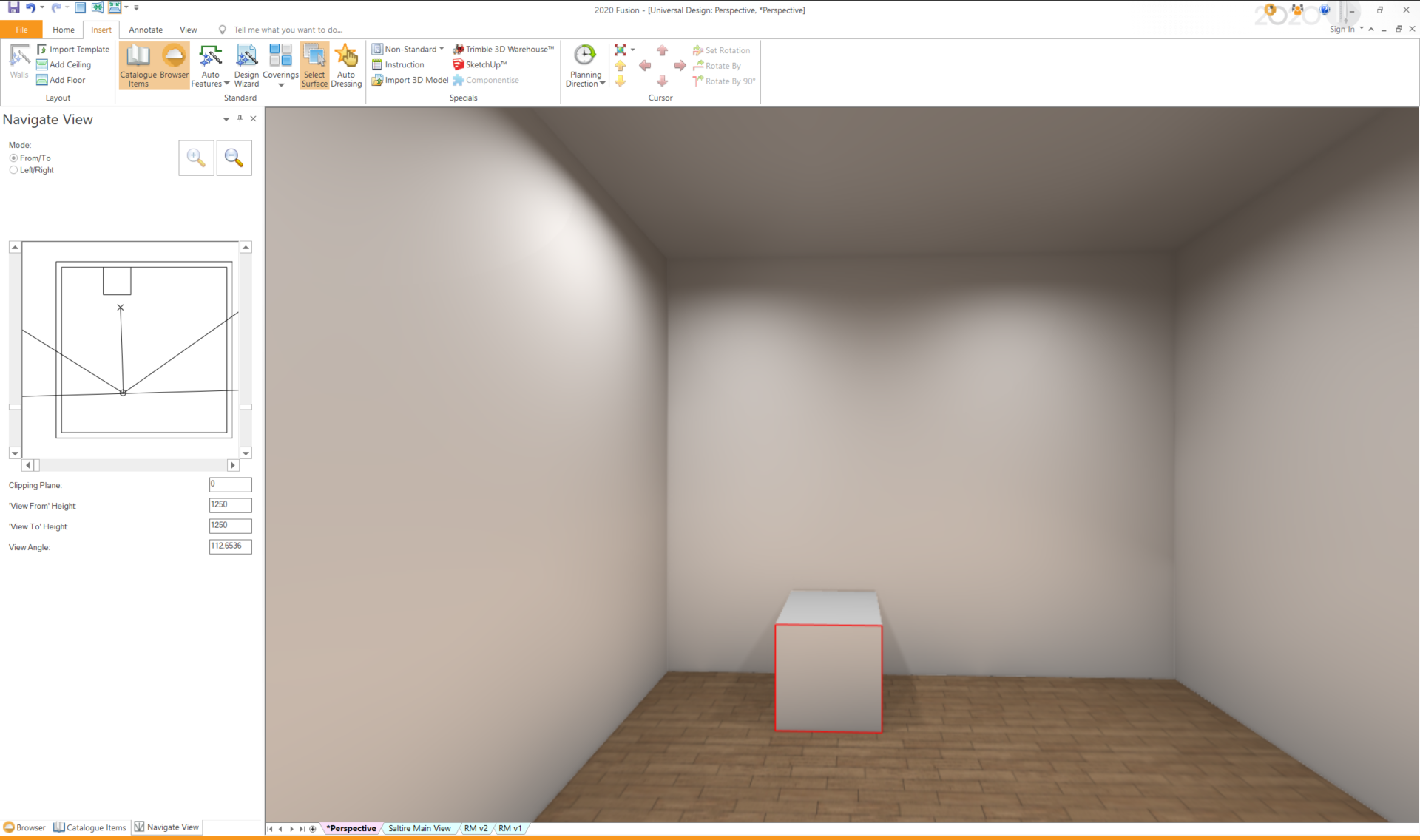

    2. Insert Tab > Select Surface > Select the face of the *Box you wish to apply tile to
    3. Insert Tab > Coverings > Item Surface

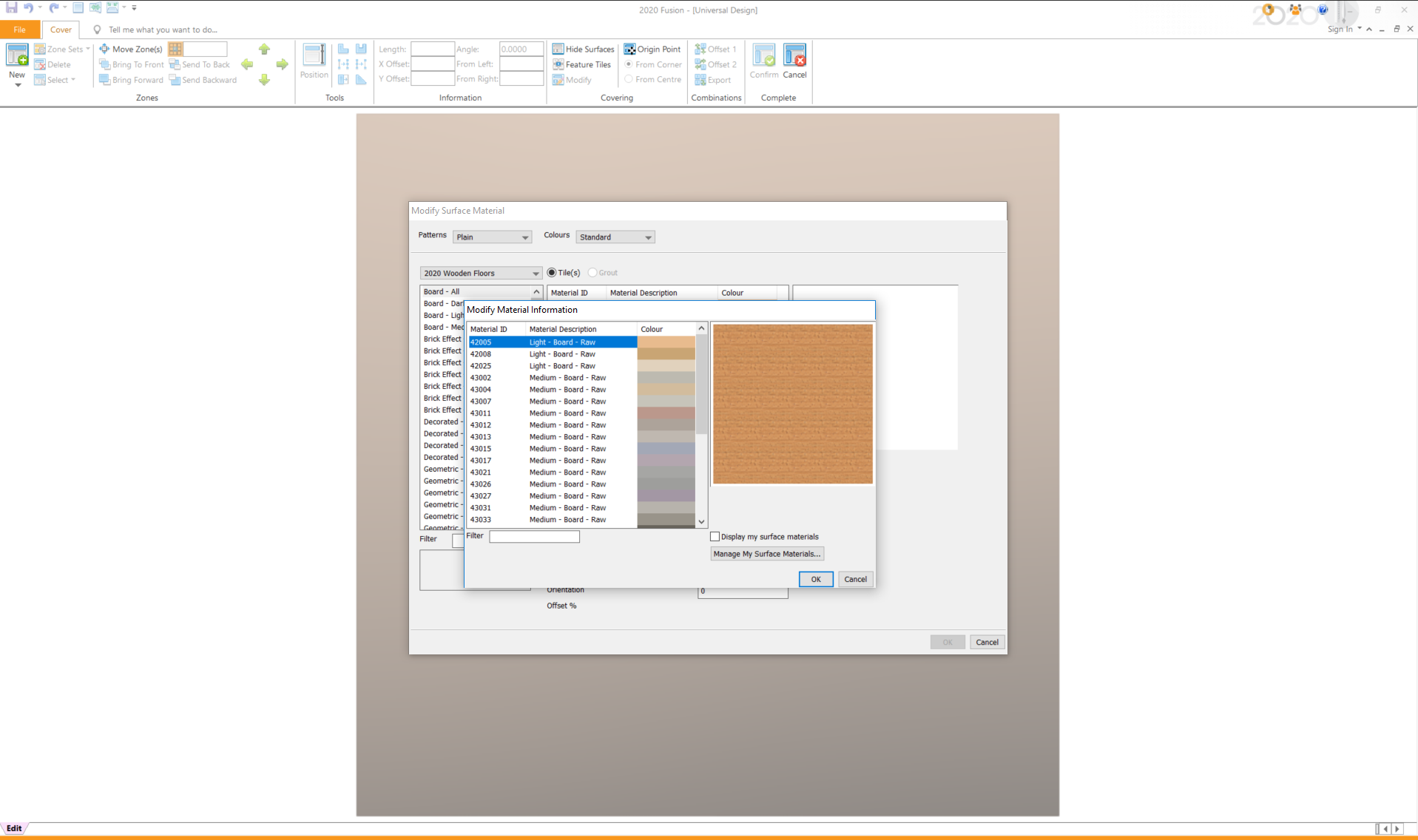

    4. Within the “Modify Surface Material” screen, click Add > select your tile/material > OK > Confirm

    See attached screenshots.

    You must be logged in to view attached files.
